ETCR6300 High Precision Clamp Leakage Current Meter

Main Functions

Measurement of AC leakage current, AC current
Current range: AC 0.000mA~60.00A
Clamp jaw size: 25mm×30mm
Memory: data storage 99 groups
Peak hold function
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR6300 High Precision Clamp Leakage Current Meter, also known as clamp type leakage current tester, high accuracy clamp type current meter, which is used for Measurement of AC leakage current, AC current. The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.

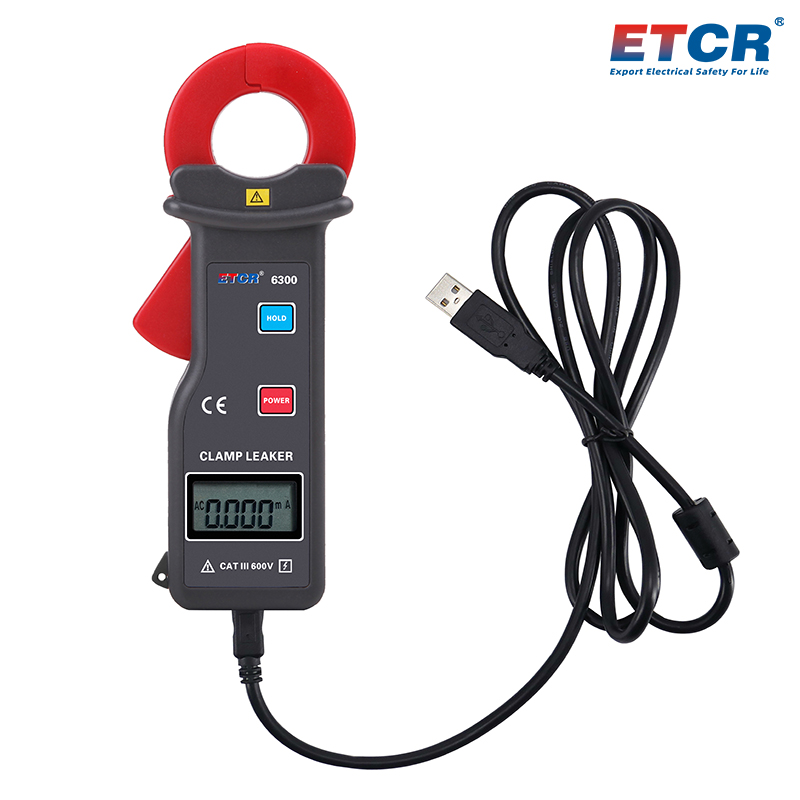

ETCR6300 High Precision Clamp Leakage Current Meter with peak hold, data hold, data storage and other functions. The meter equipped with USB communication function, it can be monitored in real-time online on the PC through USB interface and upper computer software, dynamically displaying maximum, minimum, and average values. It also has alarm value setting and indication function, as well as functions such as historical data reading, saving, and analysis.
1.The clamp meter has small volume, easy to carry, making it an essential tool for electrical safety testing.
2.Double-layer shielding technology, high accuracy, strong anti-interference ability and 1uA solution.
3.Peak hold function.
4.Memory function.
5.USB communication function.

Technical Parameter

Power Supply	Alkaline dry battery 6LR61 9V
Display Mode	4 digits LCD display
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Current Measurement Range	0.000mA~60.00A
Solution	1uA
Measurement Accuracy	±1.5%rdg±5dgt

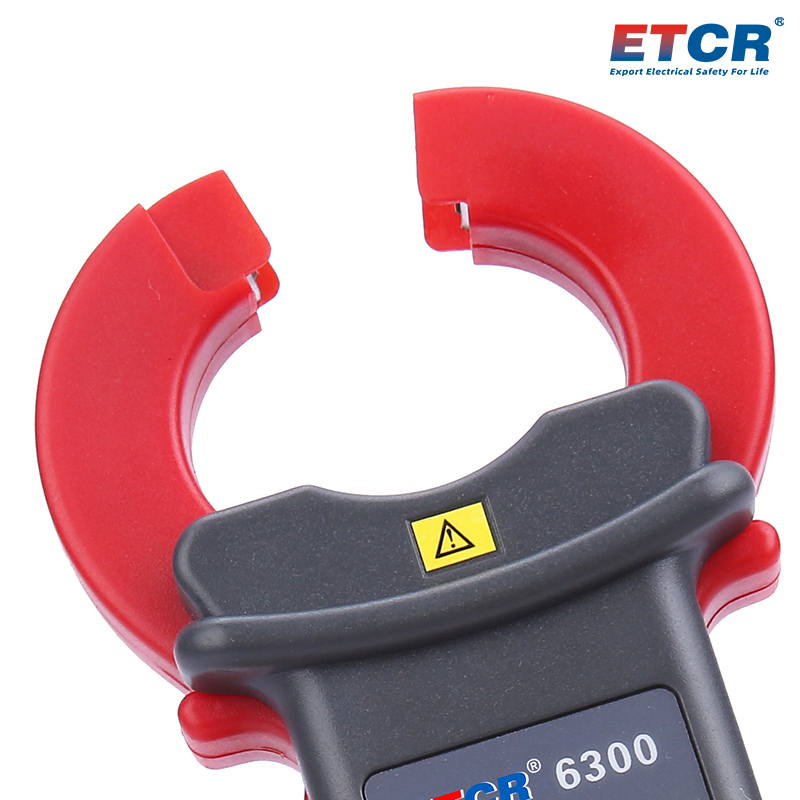

Clamp Jaw Size	25mm×30mm
Meter Size	175mm×70mm×38mm
Weight	210g(include battery)
Test Mode	Clamp CT, integration method
Sampling Mode	about 2 times/second
Frequency	50Hz, 60Hz Automatic identification
Shift Gear	Fully automatic shift
Line Voltage	Line measurement below DC 600V
Memory	99 groups, flicker to display ”FULL” symbol indicate storage full
Peak Hold	Peak capture and hold function, long press HOLD key and not release can display peak value in measurement.
Data Hold	Data hold function: “DH”symbol display
Overflow Display	Exceed measure range overflow function: “OL”symbol display
Communication Interface	USB interface
Auto Shut Down	5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery Voltage	While battery voltage decrease to about 2.8V,low battery voltage symbol display, and remind to replace the battery.
Working Current	5mA
Insulating Strength	AC2kV/rms(between the core and outside shell)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity	0℃~40℃; below 80%RH
Storage Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Communication Method	Others
	ETCR6300 High Precision Clamp Leakage Current Meter	25mm×30 mm	AC 0.000mA~60.0A	USB
	ETCR6540 Mini Clamp Leakage Current Meter	Φ40mm	AC 0.00mA~300A	--
	ETCR6640 Clamp Leakage Current Meter	Φ40mm	AC 0.00mA~300A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR6670 High Precision Clamp Leakage Current Meter	Φ70mm	AC 0.00mA~1200A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR6680 Large Caliber Clamp Leakage Current Meter	80mm×80mm	AC 0.00mA~2000A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR7100 Super Large Caliber Clamp Leakage Current Meter	108mm×148mm	AC 0.0mA~3200A	USB
	ETCR7100A Super Large Caliber Clamp Current Meter	108mm×148mm	AC 0.0A~4000A	USB

Data download

Download：

ETCR6300 High Precision Clamp Leakage Current Meter
